Medical
Wheelchair
Best Wheelchair available here










MF012

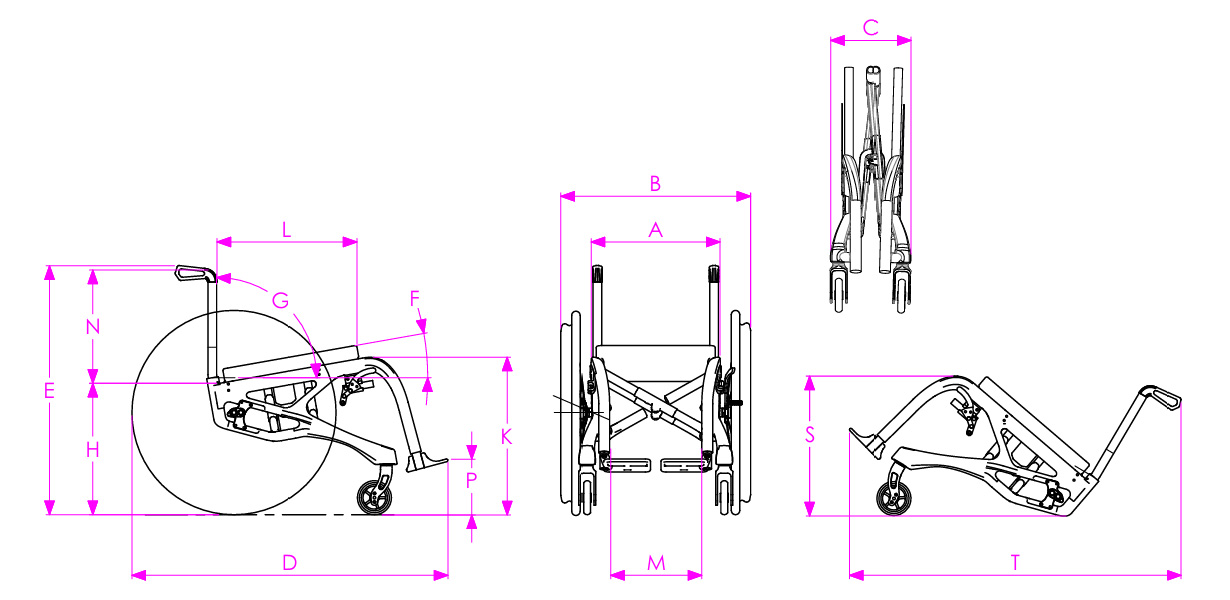

Spacifiaction | 14″ | 15″ | 16″ | 17″ | 18″ | |
Castors | 4″ & 5″ | |||||
Rear Wheel | 24″ | |||||
A | Seat Width | 350 | 375 | 400 | 425 | 450 |
B | Unfolding width | 573 | 598 | 620 | 633 | 645 |
C | Folding Width | 320 | ||||
D | Total Length | 900~930 | ||||
E | Total Height | 730~800 | ||||
F | Seat Angle | 8° | ||||
G | Back Angle | 90°~100°(in increments of 10°) | ||||
H | Seat Height Rear | 386 | ||||
K | Seat Height Front | 460 | ||||
L | Seat Depth | 400 | ||||
M | Inner Width | 418 | 445 | 470 | 496 | 520 |
N | Back Height | 300 \ 320 \ 360 | ||||
P | Pedal Height | 50.5~125.5(in increments of 15mm) | ||||
S | Frame Height | 410 | ||||
T | Frame Length | 960 | ||||
Maximun Load | 100 kg |
