Medical

Wheelchair

Best Wheelchair available here

MF015

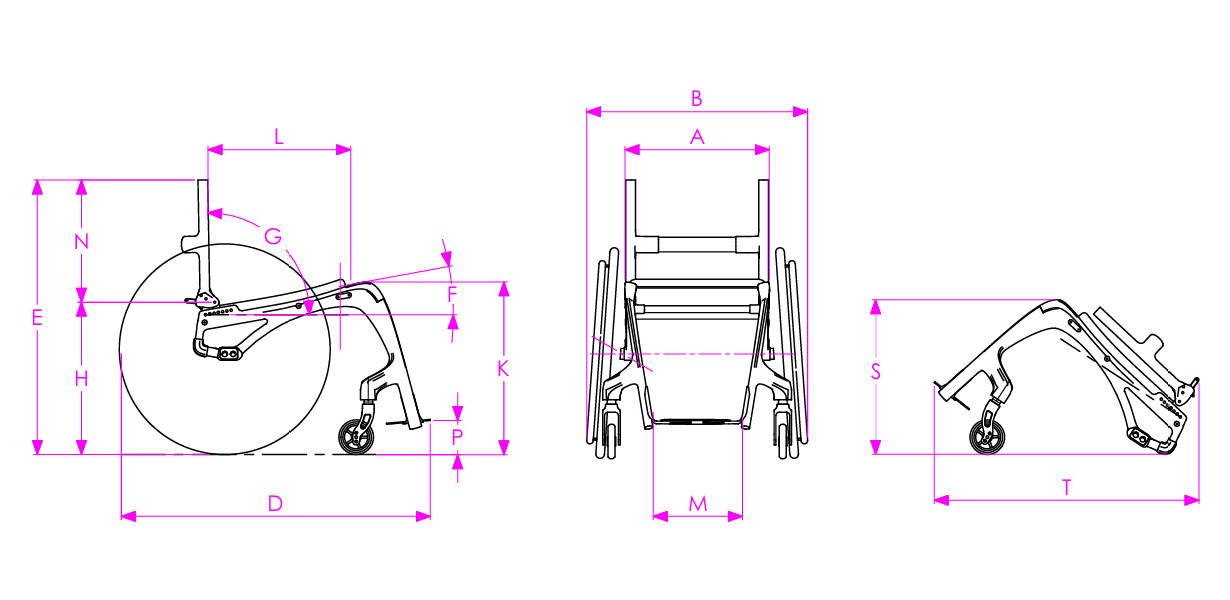

Spacifiaction  14″ 15″ 16″ 17″ 18″
Castors 4″ & 5″
Rear Wheel 24″(0°、2°、4°)
A Seat Width 350 375 400 425 450
B Unfolding width (4°) 600 625 650 675 700
C Folding Width
D Total Length 870
E Total Height 740~800
F Seat Angle 10°
G Back Angle 90°~100°(in increments of 10°)
H Seat Height Rear 415
K Seat Height Front 500
L Seat Depth 375~400(in increments of 12mm)
M Inner Width  210 235 260 285 310
N Back Height  300 \ 320 \ 360
P Pedal Height 69 ~ 116 (in increments of 10mm)
S Frame Height 445
T Frame Length 750
  Maximun Load  100 kg
